Overview
Modern commercial buildings - including high-rise office towers, shopping malls, hotels, hospitals, data centers, and mixed-use developments - are among the most electrically complex facilities in the built environment. Dozens of independent systems must be powered simultaneously and reliably: HVAC, elevators, lighting, fire safety, IT infrastructure, retail tenant loads, and emergency backup systems. Any disruption to the power supply translates directly into lost revenue, compromised occupant safety, and reputational damage for building owners and operators.
Low-voltage distribution cabinets are the foundation of every commercial building's electrical system. Receiving power from the utility at the main switchboard (MSB) level and cascading it through sub-distribution boards (SDBs) to every floor, zone, and tenancy, they must deliver precision protection, energy metering, and the flexibility to accommodate changes in occupancy and building use over a design life of 30 years or more. Our LV switchgear is built to meet these demands - compliant with IEC 61439, integration-ready for Building Management Systems (BMS), and designed for the long-term reliability that commercial building owners and M&E consultants require.
Main Switchroom - Primary Power Reception & Distribution
The main switchroom is where utility power enters the building and is distributed to every downstream system. A typical commercial high-rise main switchboard receives supply at 400V from one or more utility transformers, with bus sections feeding separate risers for tenant loads, base building services, and life-safety systems.
Our main distribution panels, incoming circuit breaker assemblies, and heavy-duty busbar systems - rated from 630A to 4000A - provide the current-carrying capacity and fault-level withstand that large commercial buildings require. Bus-tie arrangements allow supply switching between transformer feeders without interruption, ensuring continuity of supply during planned maintenance or utility switching events. All assemblies are IEC 61439-compliant and compatible with power monitoring instrumentation for real-time load management and energy reporting.

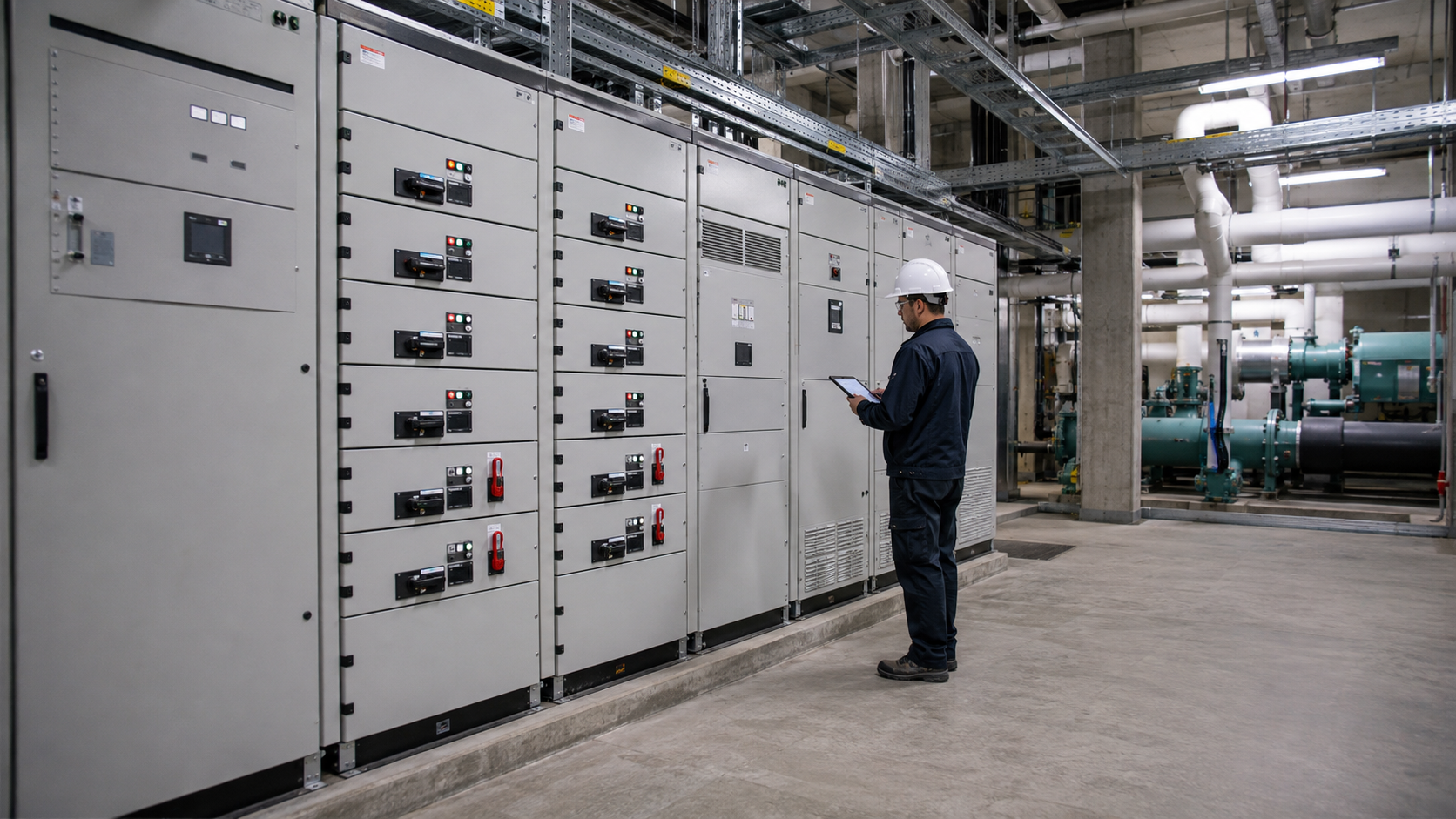

HVAC & Mechanical Services - Motor Control Centers (MCCs)
Heating, ventilation, and air conditioning typically accounts for 40–50% of a commercial building's total electrical load. Chiller plants, air handling units (AHUs), cooling towers, condenser water pumps, and pressurization fans are all motor-driven loads that require dedicated motor control centers for protection, isolation, and speed control.
Our MCC drawer connectors, plug-in isolator mechanisms, and busbar insulators are engineered for the high-cycling duty that HVAC motor loads impose - frequent starts, variable speed drive (VFD) harmonics, and the need for fast, safe isolation during filter changes and coil cleaning. Mechanically interlocked operating handles and padlock-ready isolator brackets ensure that maintenance technicians can safely de-energize individual AHU or pump circuits without disturbing adjacent live equipment.

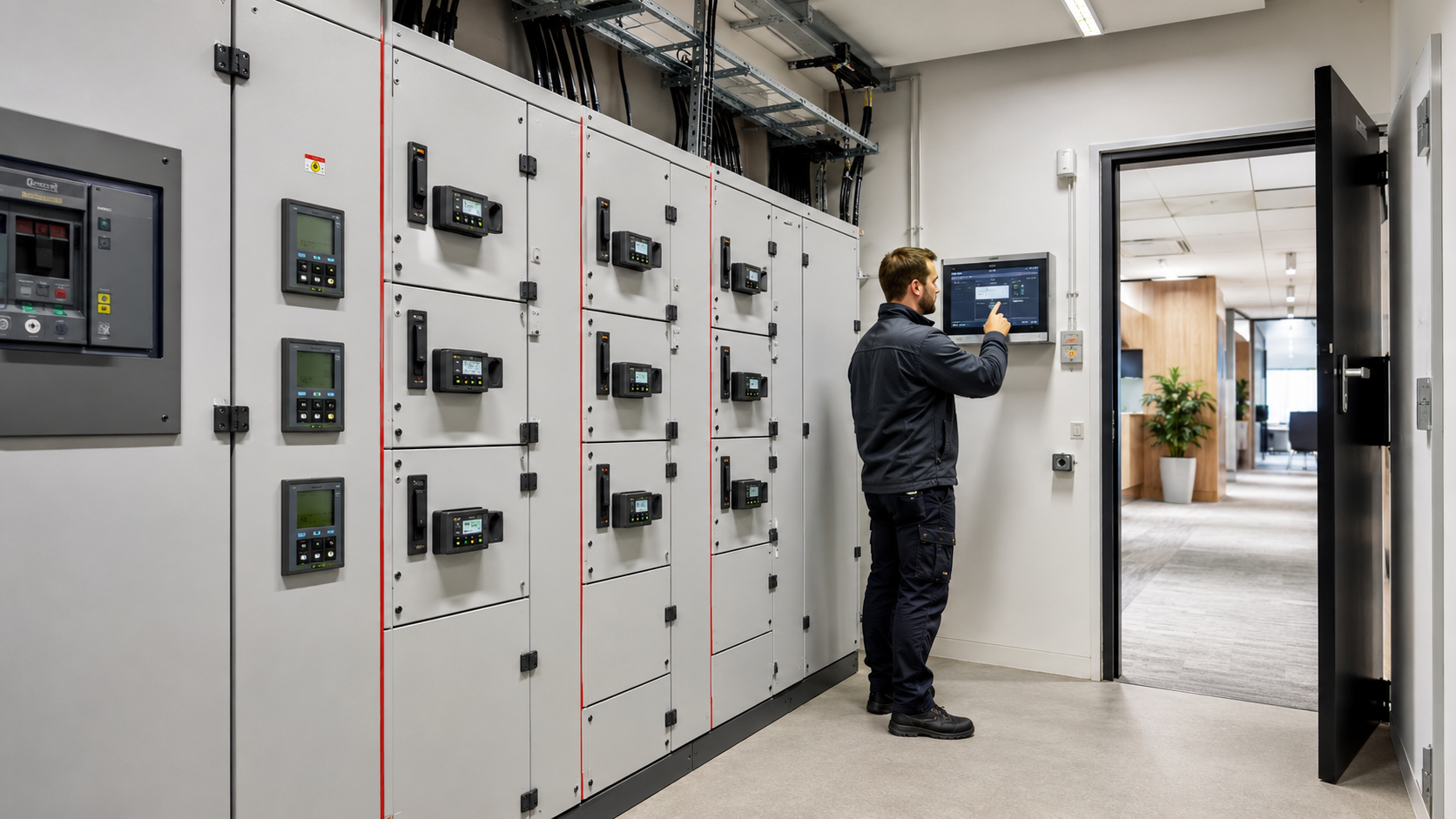

Floor & Tenant Sub-Distribution - Metering & Flexibility
In multi-tenant office towers and retail centers, sub-distribution boards on each floor or tenancy boundary serve two purposes: protection of downstream circuits and accurate sub-metering of each tenant's energy consumption for billing and sustainability reporting.
Our sub-distribution panel assemblies support the integration of smart metering modules and communication interfaces, enabling energy data to be consolidated at the BMS level for real-time monitoring, peak demand management, and ESG reporting. Modular drawer and plug-in configurations allow tenancy fit-outs to be reconfigured - circuits added, removed, or re-rated - without replacing the entire board, protecting the building owner's infrastructure investment over the long term.
Life Safety & Emergency Power - Critical Protected Circuits
Commercial buildings are legally required to maintain power to life-safety loads - emergency lighting, exit signs, fire alarm panels, sprinkler pump sets, stairwell pressurization fans, and firefighter lifts - during a utility supply failure. This requires a dedicated emergency distribution system, typically fed from a standby generator via an Automatic Transfer Switch (ATS), with distribution boards physically and electrically segregated from normal supply panels.
Our operating mechanisms, earthing switch assemblies, and interlock systems support ATS integration and ensure that generator changeover is executed safely and without back-feed risk. High flame-retardancy components are used throughout life-safety distribution boards, meeting the fire performance requirements mandated by building codes and fire authority inspectors.
Data Rooms & Critical IT Infrastructure - Clean, Stable Power
Every commercial building hosts IT infrastructure - from small server closets in office suites to full-floor data rooms in premium office towers. These loads require clean, stable power with no voltage sags, harmonic distortion, or supply interruption. Dedicated distribution boards for IT and communications rooms are typically fed from UPS systems, with strict requirements for earth leakage protection and electromagnetic compatibility.
Our components support the construction of IT-grade distribution boards with the insulation quality, leakage current control, and mechanical precision that sensitive electronic infrastructure demands. Cabinet accessories including panel locking systems, cable management hardware, and indicator handle assemblies contribute to the secure, organized electrical rooms that building operators and IT facility managers expect.
Why Our Products Fit Commercial Buildings
Commercial building projects are driven by M&E consultant specifications, contractor cost management, and long-term owner lifecycle expectations. Our LV distribution components are positioned to meet all three:
From the main switchroom of a landmark office tower to the sub-distribution boards of a neighborhood shopping center, our factory-direct supply chain delivers the component quality and application support that commercial building projects demand.
